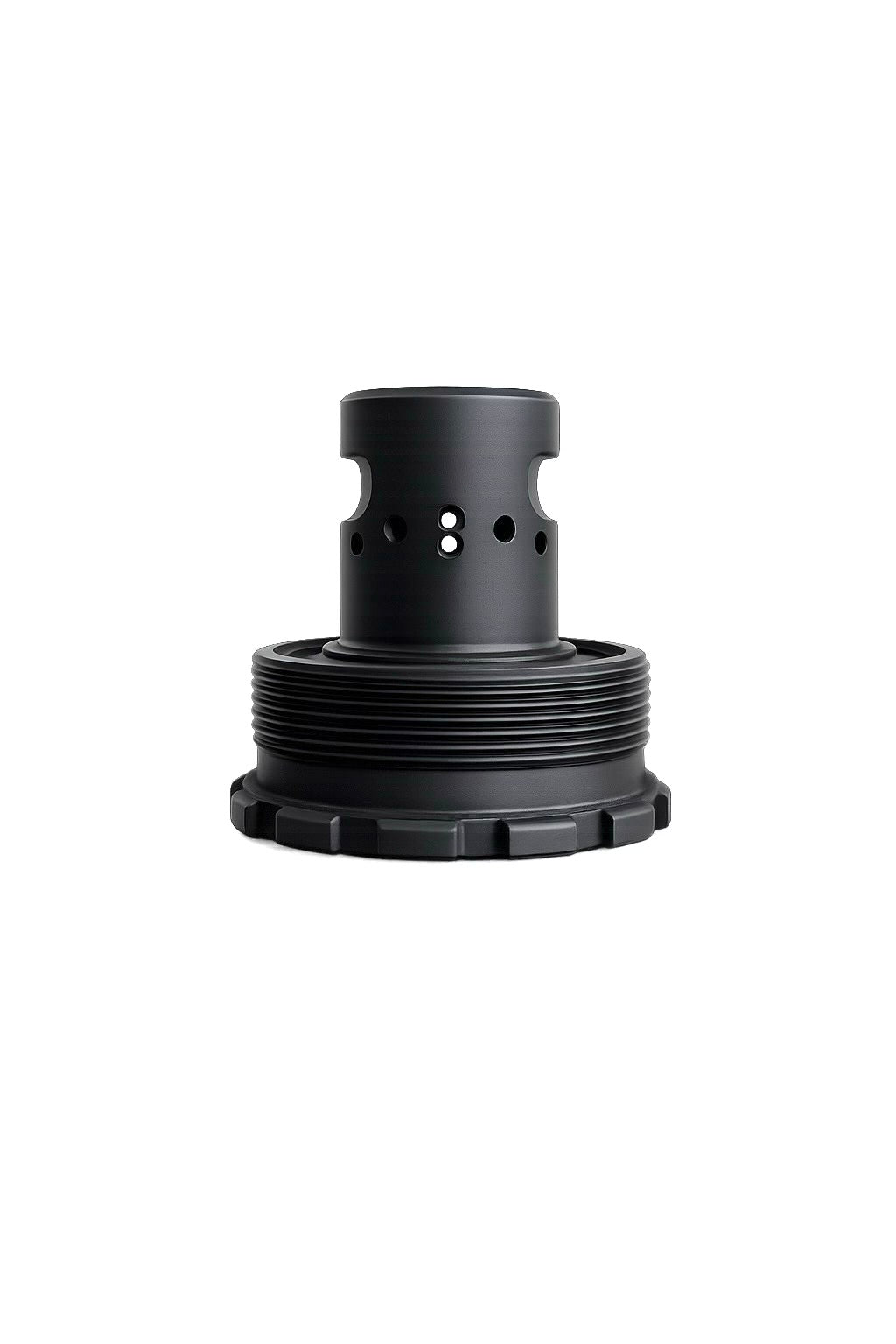

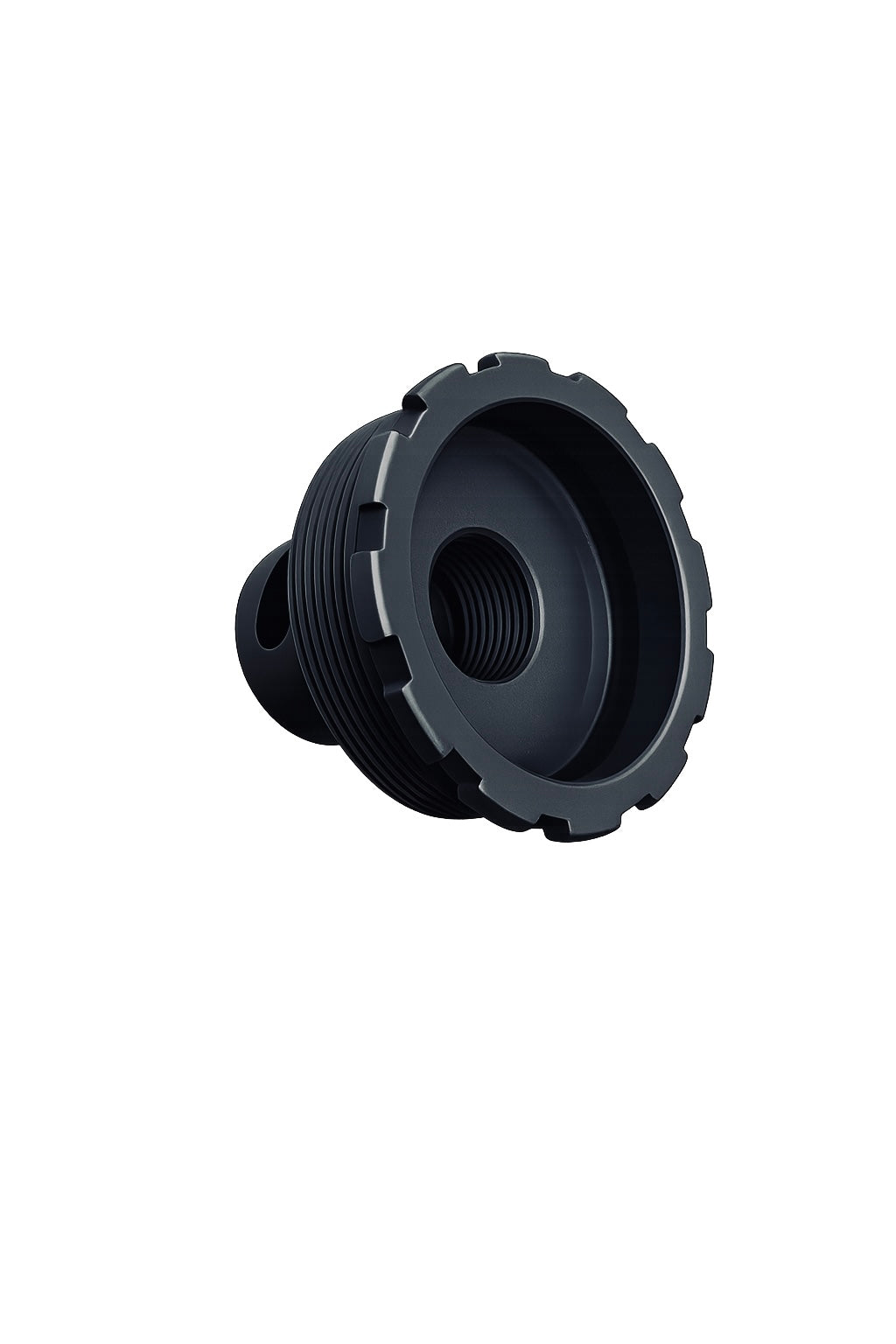

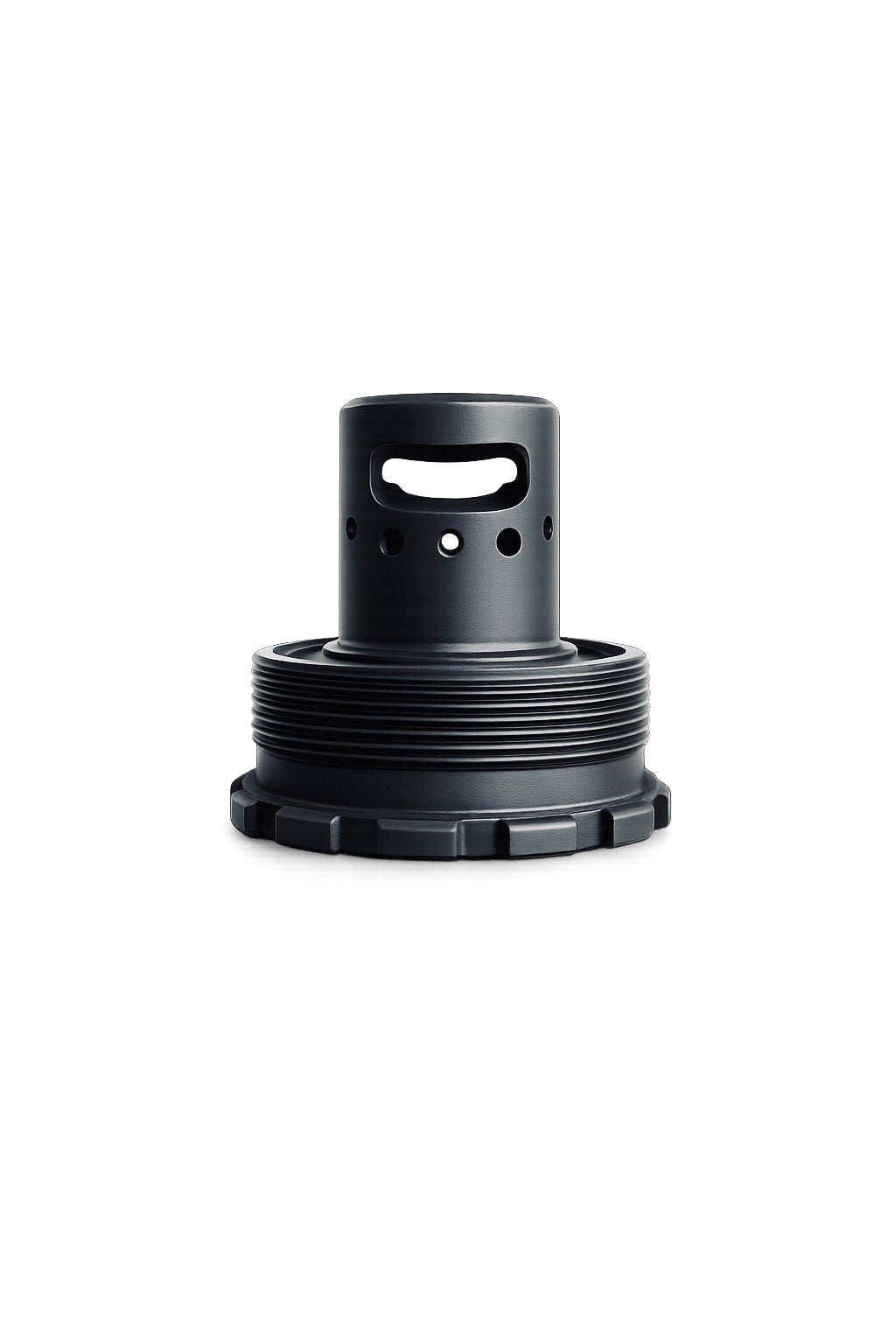

DM HUB Brake - Recessed

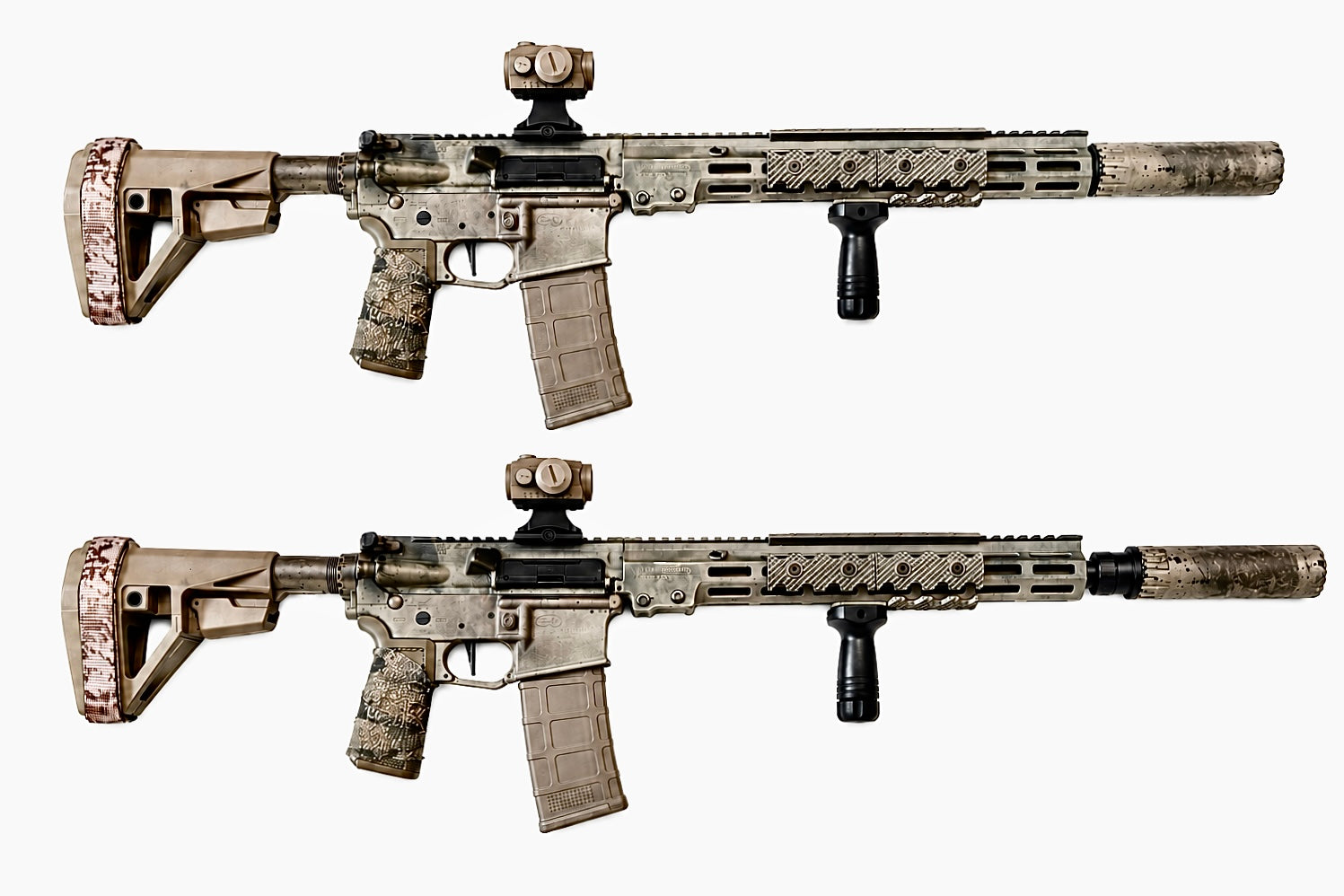

Engineered for the shooter who demands maximum performance in a minimal package, the DM (Dynamic Mixing) Brake is one of the most compact HUB-compatible silencer mounts available. By recessing the mount, it reduces the added length to your barrel by 0.4 inches—delivering an overall system nearly 0.5 inches shorter than traditional direct-thread mounts—without any compromise in sound suppression.

The advanced port geometry features radial ports that effectively diffuse peak muzzle pressure, followed by precisely angled ports that create controlled turbulence. This dynamic mixing slows and manages expanding gases within the suppressor, optimizing performance. Independent testing confirms sound signature is maintained and often improved compared to conventional two-piece mounts and direct-thread brakes. As a muzzle brake, its unique porting also mitigates recoil, reducing stress on the suppressor and promoting greater long-term durability under hard use.

Machined from 17-4 PH stainless steel, gas nitrided, and H1025 heat treated, the DM HUB Brake is built to endure the most demanding firing schedules. For dedicated suppressor hosts, this is the ultimate “set it and forget it” solution—reliable, repeatable, and ready for the field.

Specifications -

Torque : 30 ft lbs.

Thread Pitch : 1/2 x 28 - 1.375 x 24 Bravo HUB

Bore : 0.345 " (30 Caliber)

Material : 17-4 PH Stainless Steel

Coating : Gas Nitride

Weight : 2.5 oz

OAL : 1.38 "

Minimum Clearance to First Baffle : 1.28"

Minimum Handguard to Barrel Length : 1.0" (16" barrel no longer than 15" handguard)
